For BESS
Anomaly & Abuse Detection
Stage 1
Prevention & Abuse Detection
Catch anomalies before they become battery events
Water Leak Location Sensor
- temperature in °F/°C
- humidity in %rH
- Leak Location 0.5m precision
Cylindrical Thermography Hotspot Sensor
- 4 zones per thermography sensor
- temperature in °F/°C
- humidity in %rH
➤
hours, days or more
hours, days or more
For AI racks & battery rooms
(Gen 4)
Off-Gas Detection
Stage 2
Off-Gas Venting
Last warning before thermal runaway
Stage 2 + 3
D-OFFGAS-RUNAWAY(Gen 4)
- Designed for AI racks, suitable for battery rooms
- Daisy chain Class A loop
- Discrete off-gas & thermal runaway detection
- 2 relays per sensor for in rack action
- Calibration free, 10 year lifespan
➤
sec to min
sec to min
For BESS & battery rooms
Thermal Runaway Detection
Stage 3
Thermal Runaway
Flammable gas 0 to 100% LEL
Stage 2 + 3
R-GAS-FLAMMABLE Hydrogen & Off-gas
- BESS & battery rooms, room level
- Standalone, no base unit needed
- 0 to 100% LEL flammable gas & off-gas
- ETL Listed to UL 2075
- Calibration free, up to 10 year lifespan
Base Units
- P-BASE-8: Class A loop controller,
all three stages from one base unit - Output to the BMS over Modbus TCP,
BACnet IP and MQTT - Data logging
- Required for the D-OFFGAS-RUNAWAY,
optional for the R-GAS-FLAMMABLE
and the Stage 1 abuse sensors

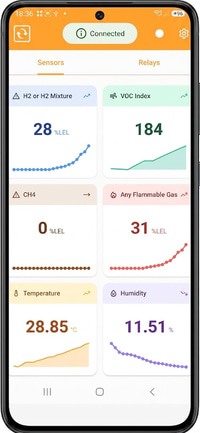

Prevent-iON® App
Test, configure, commission and update
the R-GAS-FLAMMABLE from an Android device.
