Every stage before a battery fire.
One platform.Abuse, off-gas and thermal runaway detection
sold exclusively through 8 fire safety OEMs

Prevent-iON^® is a modular sensor platform designed to protect lithium-ion battery systems. Unlike single purpose detectors, it combines prevention, off-gas and thermal runaway gas detection within one architecture.

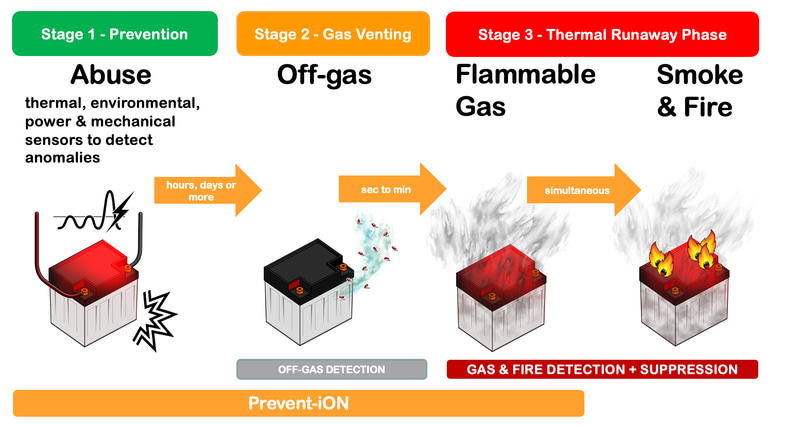

The stages of a lithium-ion battery failure, from abuse to off-gas to thermal runaway, and the Prevent-iON sensor for each stage

Stage 1

Abuse prevention

Most battery incidents originate outside the cells. Stage 1 sensors catch external hazards such as water leaks, overheating or environmental anomalies before they become electrical fires.

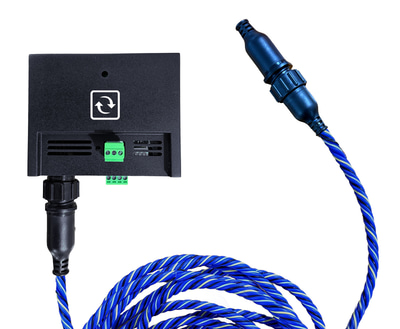

LeakWater leak location

HeatHeat and environment

Abuse sensors

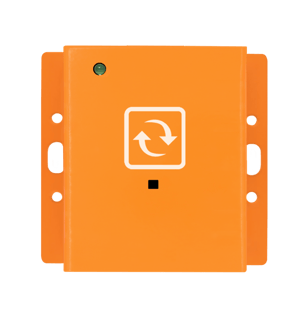

Prevent-iON Gen 4 D-OFFGAS-RUNAWAY in rack off-gas and thermal runaway sensor

Stage 2

Off-gas detection

The Gen 4 D-OFFGAS-RUNAWAY detects off-gas and thermal runaway in the rack, with two relays per sensor for action in the rack. Designed for the AI rack, suitable for battery rooms.

3 of 3Gas releases detected

10 yrCalibration free

Gen 4 sensor

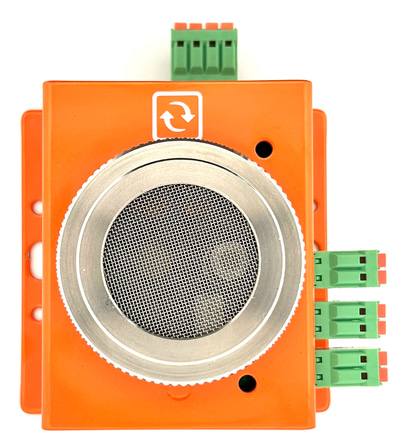

Prevent-iON R-GAS-FLAMMABLE off-gas and flammable gas detector

Stage 3

Flammable gas detection

The award winning R-GAS-FLAMMABLE detects off-gas and the hydrogen containing flammable gases of thermal runaway, 0 to 100% LEL. Calibration free and standalone: relays and Modbus are built in.

ListedUL 61010-1, UL 2075

CSFMListed in California

R-GAS-FLAMMABLE

One base unit to network all three stages

The P-BASE-8 runs a Class A loop of up to 40 Gen 4 sensors and takes the Stage 1 sensors on its four probes. The R-GAS-FLAMMABLE works standalone and joins the P-BASE-8 when you want it on the network. Every reading, alarm and relay state goes out over Modbus TCP, SNMP, MQTT and BACnet IP.

P-BASE-8
